Centurion D5 Gate Motor
Features.
Max Gate Weight 500Kg
Gate Speed 22/min.
Battery Back Up
Daily Operation 150 Operations per Day
Pedestrian Opening
Holiday Lock out Mode.
Can operate from a Solar Pannel Source

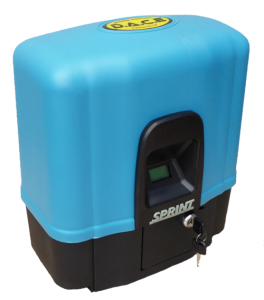

Duraslide Sprint Gate Motor
Features.
Lcd Interface
Ultra fast speed 25m/min (100kg Gate)
Daily Operations 100 per Day
Max gate mass 500kg
External warning light
Battery Back up
Pedestrian opening
Solar Pannel Ready
External warning light – Dont get Caught off gaurd. this Super bright red Led is an absolute must. it is visible from more than 100 m and will flash under the following conditions. -Mains Failure, Lowe Battery, Service Due, Encoder Fault or Obstuction, this early waring sign will direct the owner to the lcd screen.

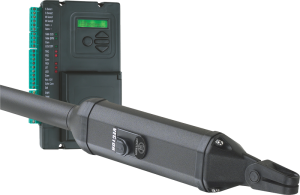

Vector 2 – Domestic and Light Industrial Swing Gate Motors
Models
Vector 400 – Reliable Operator with a shorter stroke for the majority of domestic swing gate application
Vector 500 – Extended stroke for a larger domestic and light industrial swing gate applications
Features.
Vector 400
Battery Back Up
Speeds Control
Puch Force Max 250kgf
Daily Operations 200
Max Leaf With for corresponding gate mass
V400 2m – 500kg / 4m – 200kg
V500 2m – 750kg / 4m – 310kg
Can Operate from a solar pannel source.

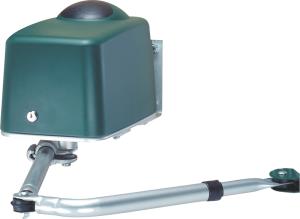

Centurion R3 Gate Motor – Domestic Rotary swing gate motor
Features
Battery Back up
Daily Operatoins 150 Openings per day
Max leaf width for corresponding gate mass
2m – 350kg
3.5m – 150kg
Can be operated from a solar Pannel
Centurion R 5 Gate Motor – large domestic and light industrial swing Gate Motor.
Features
Battery Back Up
Daily Operations 150 Openings per day
Max Leaf With for corresponding gate mass
2m – 600kg
3.5m – 260kg
Can be opertated from a solar pannel

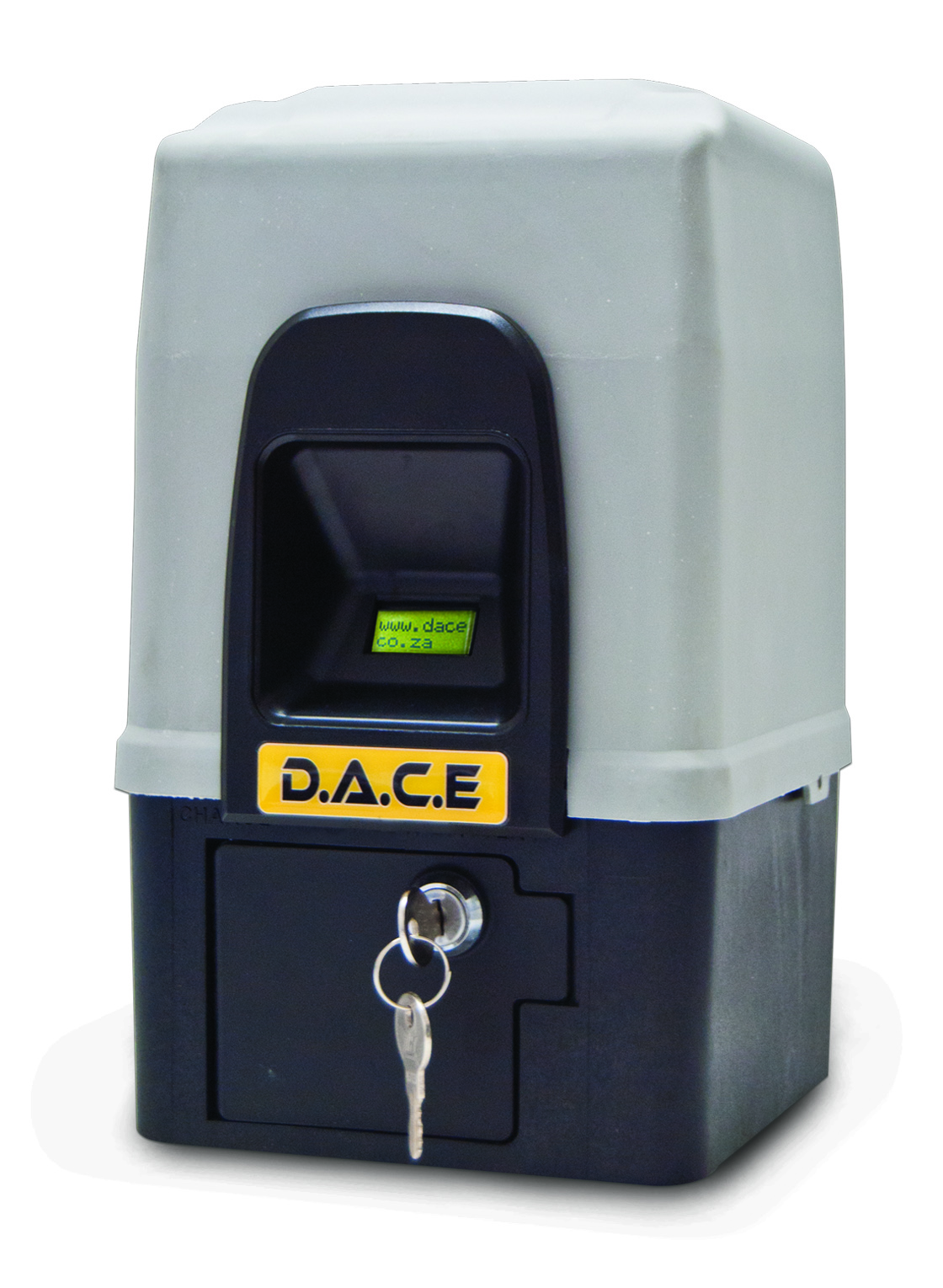

Duraslide Compact
Features
Openings per day 20
Max Gate mass 300kg
Max Gate size 8m
Speed 18m/min
________________________________________________________________________________

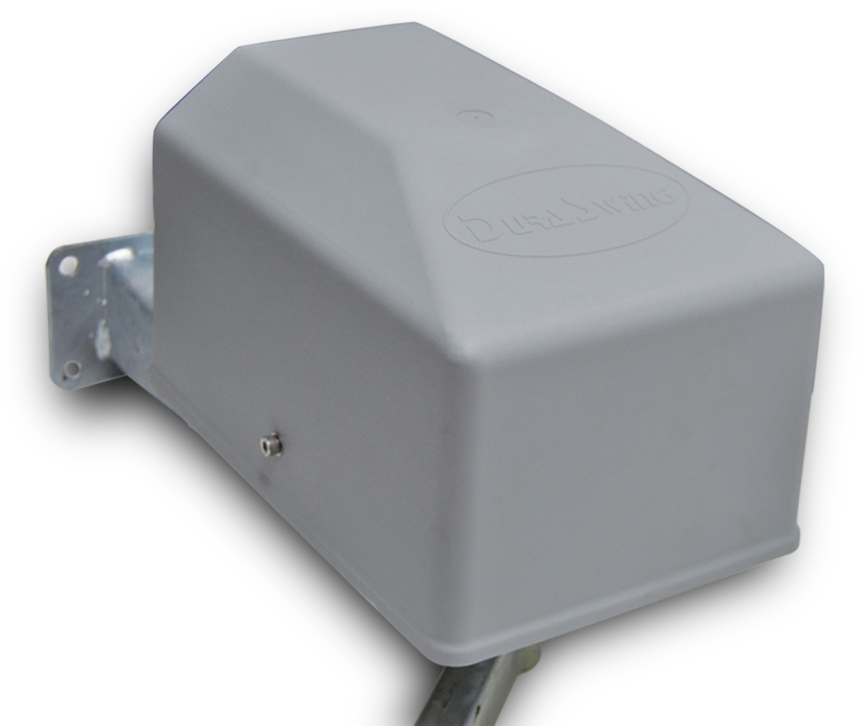

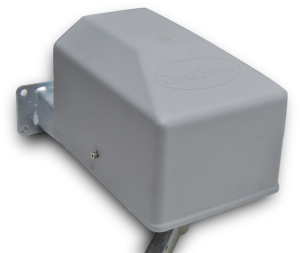

Dura Swing Gate Operator
Features
Openings per day 100
Max Gate mass 100kg per leaf
Max Gate size 2.5m per leaf
Opening time 12 – 14 secs
________________________________________________________________________________
Centurion Vanatge Swing Gate Motor.
Features.
Battery Driven
Push Force 250kgf
Daily Operations 250 max
Max leaf width for corresponding gate mass
V400: 2.5m=500kg,4m=150kg
V500: 2.5m=750kg,4m=230kg
Speed Conrol.
Swift Operation
Anti Crushing control
Solar pannel Ready.
______________________________________________________________________________
Centrurion Vert-x Swing Gate Motor
Features
Battery Driven
Push Force 250kgf
Gate Opening time 11 secs
Daily Operations 250 max
Max leaf width for corresponding gate mass
V400: 1.5m=600kg, 2m=335kg, 2.5=215kg, 3m=150kg
Speed Conrol.
Swift Operation
Anti Crushing control
Solar pannel Ready.
_______________________________________________________________________________
Centurion D10 Gate Motor – Industrial
Features
Battery Driven 24v
Push fprce 30kgf
Gate Speed 22 – 26m/min
Daily Operations 750
Max Gate Mass 1000kg
Die-cast Alluminium Gearbox
Speed Control
Holiday Lock out Mode
Can store up to 500 Remotes Controls
____________________________________________________________________________
Safety Detection Device for Gate Automation
P36 Passive sensitive Edge.
The P36 is a rubber buffer that is simply secured to the leading edge of the gate and required no electrical connection to the gate operator.
The P36 Minimizes the damage caused by a gate accidently closing on a vehicle or a person.
